| Place of Origin |
Zhejiang China (Mainland) |
| Brand Name |
AILIPU |
| Model Number |
JCM2 |
| Theory |
Reciprocating Pump |
| Structure |
Diaphragm Pump |
| Usage |
Water |
| Power |
Electric |
| Standard or Nonstandard |
Standard |
| Fuel |
Other |
| Pressure |
Low Pressure |
| Application |
Metering |

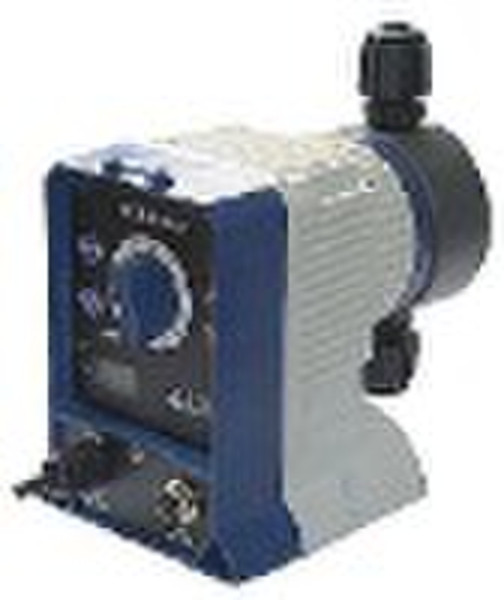

Metering Pump JCM Series *New design, tightness and long-life *Manual adjustment both of stroke length and frequency *Remote control is available *Accepting 4-20mA signal to adjust the frequency under remote control (optional) *Accepting pulse-frequency to adjust the frequency under remote control (optional) *Controlling the output achieved by programming to control the on/off time of output relay *The paremeter of control panel can be locked *The pump will stop working and alarm at low liquid level *The flow can be detected with flow detector, and alarm *With 6 grades discharge pressure setting *With LCD display (optional) *With 485 serial interface to achieve computor control. Technical Parameter TypeCapacity (L/H)Pressure (Bar)Connecting SizeAverage input Power (Kw)Weight (Kg)JCM1-1/20.7 1 20.7 1/4O.D, PE tubing 227.8JCM1-1.9/17.2 1.9 17.2 1/4O.D, PE tubing JCM1-3.8/7.6 3.8 7.6 3/8O.D, PE tubing JCM1-7.6/3.4 7.6 3.4 3/8O.D, PE tubing JCM1-12.1/1.5 12.1 1.5 3/8O.D, PE tubing JCM1-15/1 15.1 1 1/2O.D, PE tubing JCM2-4.9/20.7 4.9 20.7 3/8O.D, PE tubing 448.4JCM2-9.5/10.3 9.5 10.3 3/8O.D, PE tubing JCM2-15.1/6.9 15.1 6.9 1/2O.D, PE tubing JCM2-30.3/4.1 30.3 4.1 1/2O.D, PE tubing JCM2-75.7/1.7 75.7 1.7 1/2O.D, PE tubing JCM3-15.1/12.1 15.1 12.1 1/2O.D, PE tubing 849.7JCM3-38/5.5 38 5.5 1/2O.D, PE tubing JCM3-95/2.07 95 2.07 1/2O.D, PE tubing Material Pump head PVC PVDF SS304 SS316 Diaphgram PTFE PTFE PTFE PTFE Valves PVC PVDF SS304 SS316 Balls Ceramic Ceramic Ceramic Ceramic
