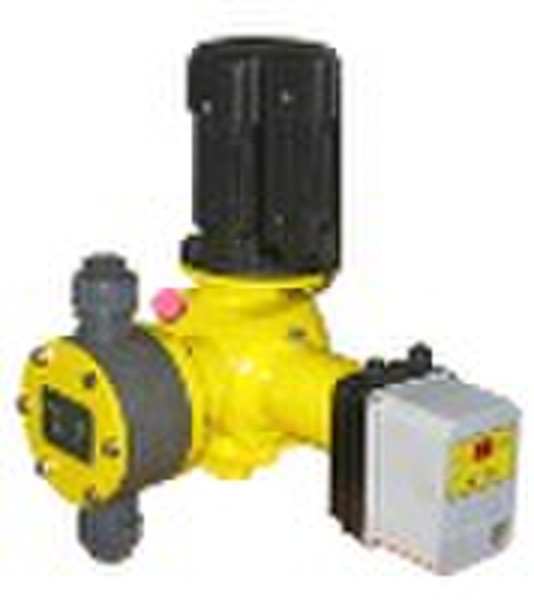

JXM-AD1 metering pump
original price: 280,00 USD
Jona Yang
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | AILIPU |
| Model Number | JXM-AD1 |
| Theory | Other |
| Structure | Diaphragm Pump |
| Usage | Other |
| Power | Electric |
| Standard or Nonstandard | Nonstandard |
| Fuel | Other |
| Pressure | Low Pressure |
| Application | Metering |
JXM-AD1 Series Main Specification ** The capacity up to 500 LPH ** The maximum pressure up to 12 bar ** Measuring accuracy reaches to +/-1% ** Temperature of liquid shall be between -10 degree to 40 degree ** Max.suct: 2m ** Different material of pump head to meet different chemicals Main Features ** Mechanical actuated diaphragm ** Changable eccentric drive ** Power-off seal, no leakage, with security delivery ** Small size in simple structure Control ** Stroke actuator: accepts signal 4 20mA to adjust the stroke length automatically Others ** Diaphragm rupture detection system
Delivery terms and packaging
Packaging Detail: Strong Carton packing suitable for the sea transportation! Delivery Detail: 10 days
Port: NINGBO, SHANGHAI
