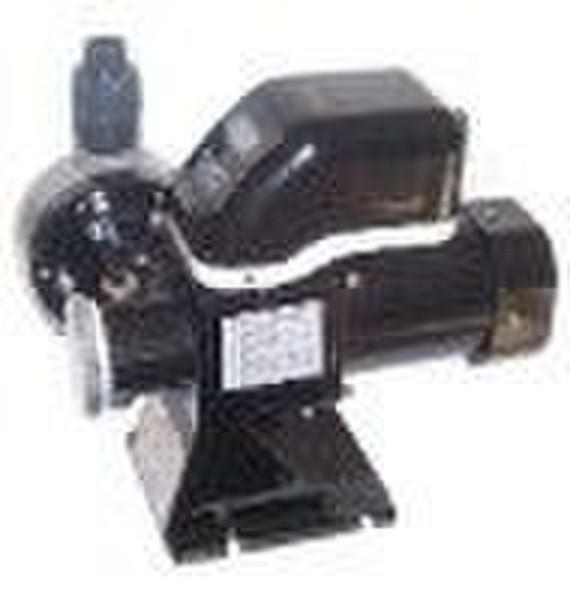

JWM-A automatic chemical dosing pump
original price: 190,00 USD
Jona Yang
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | AILIPU |
| Model Number | JWM-A |
| Theory | Other |
| Structure | Diaphragm Pump |
| Usage | Other |
| Power | Electric |
| Standard or Nonstandard | Standard |
| Fuel | Other |
| Pressure | Low Pressure |
| Application | Metering |
JWM-A series Capacity: 6.5l 150l/Hr Max.Pressure: 3 10 bar Stroke: 2 5 mm Speed: 54,90,108,135,150 Diaphragm: Dia.65, 84,94 Inlet: 9mm Oulet: 15mm Power: 40W,60W Voltage/frequency: 220V/50HZ ( Other voltage and frequency is avaiable) * Leak-free construction * PVC,PTFE,PVDF,1Cr18Ni9Ti, SS316 are available as the material of wet ends * Suit for sorts of corrosion resistant medicine * Mountable on the chemical tank * Simple installation, convenient maintance * operate higher safely * capacity adjustable while working *Aviliable with the digital controller, to achieve the long-distance capacity control. Material &Chemicals Pump head Diaphragm Ball valve Valve seat& O-ring Chemicals PVC PTFE/EPDM Ceramic PTFE/FPM Sodium hypochlorite, Aluminium sulfate, Ferric chloride, PAV, Sulfuric acid, Phoshor acid, Urea, Anti foams, Calcium chloride, Aluminium chloride Ss304/316 EPDM Coagulant, Ammonia water, Hydrazin, Caustic soda
Delivery terms and packaging
Packaging Detail: Strong Carton packing suitable for the sea transportation! Delivery Detail: 10 days
Port: NINGBO, SHANGHAI
