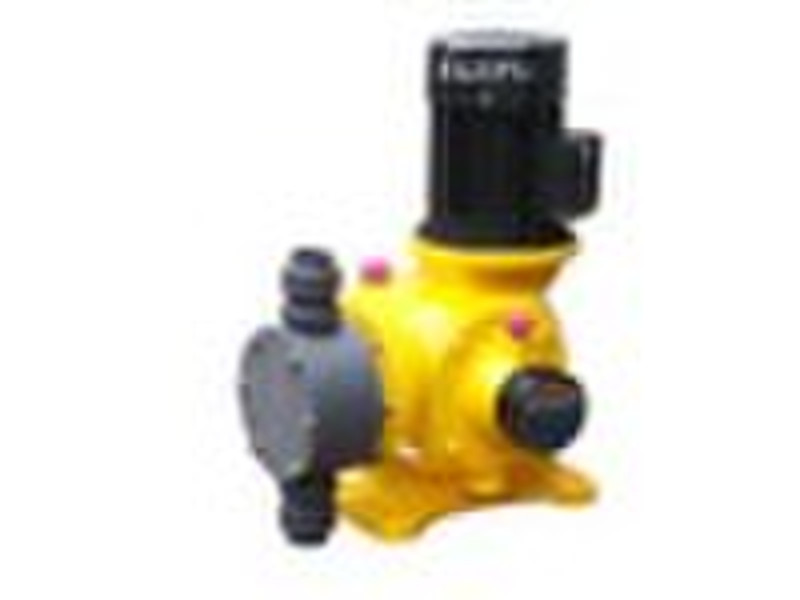

Dosing pump
original price: 308,00 USD
Jona Yang
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | AILIPU |
| Model Number | JXM-A 85/1 |
| Theory | Other |
| Structure | Diaphragm Pump |
| Usage | Other |
| Power | Electric |
| Standard or Nonstandard | Nonstandard |
| Fuel | Other |
| Pressure | Low Pressure |
| Application | Metering |
JXM-A Series Main Specification ** The capacity up to 500 LPH. ** The pressure up to 12 bar ** Measuring accuracy reaches to +/-1% ** Temperatures of liquid shall be between -10 degree to +40 degree Main features ** Mechanical actuated diaphragm type metering pump ** Changeable eccentric drive ** power-off seal, no leakage,with security delivery ** small size in simple structure Control ** Manual adjustment of the stroke ** Stroke actuator(accept signal 4 20mA to adjust the stroke automatically) ** Digital controller Others **It can be used to transport the goods which is high-viscosity,corrosive or dangerous **Diaphragm rupture detection system ( two diaphragms)
Delivery terms and packaging
Packaging Detail: Strong carton suitable for international transportationDimension: 360*200*400Weight: 14 kgs Delivery Detail: 10 DAYS
Port: NINGBO/SHANGHAI
